Akuvox E16C in the UAE

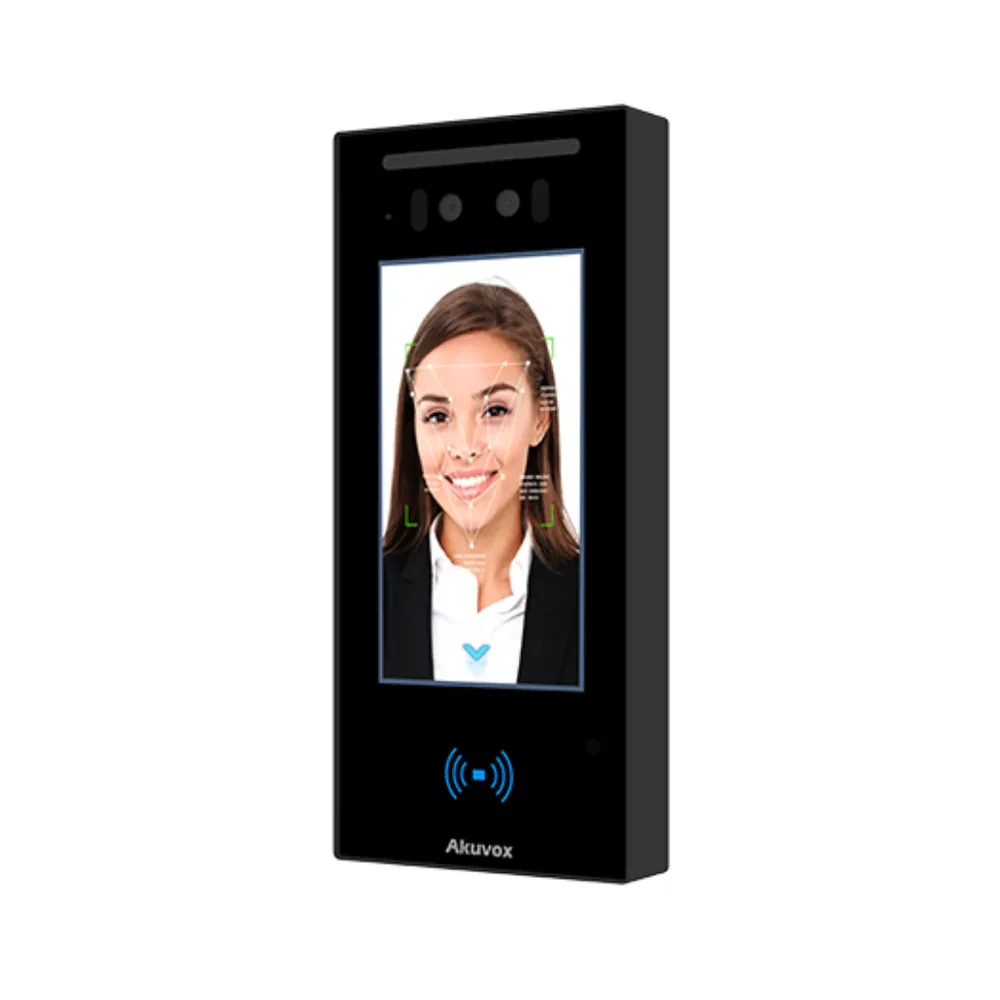

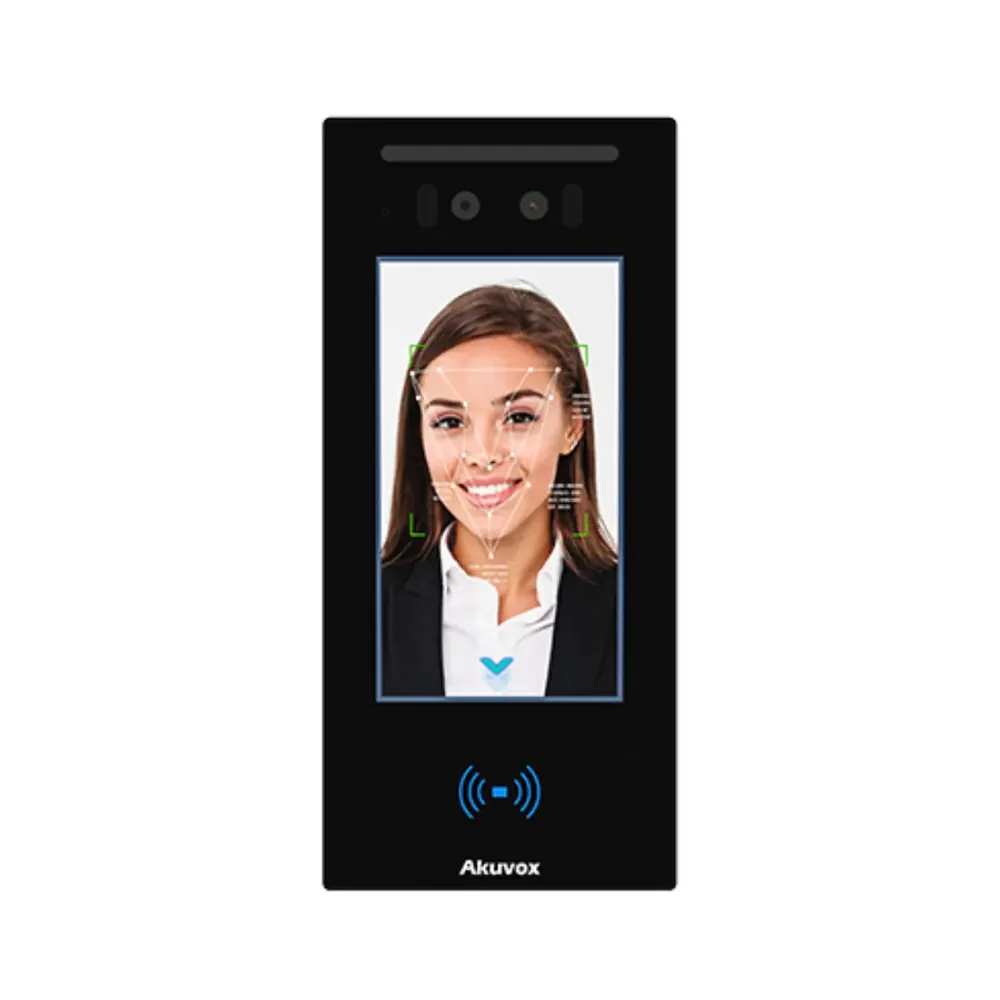

The Akuvox E16C is a video door intercom from Akuvox, using face recognition, rfid card, pin or password, qr code and mobile credential as the credential. It stores 2,000 users on the device itself. It connects over TCP/IP, RS-485, Wiegand, OSDP and SIP intercom. Environmental rating: IP65 confirmed by Akuvox, IK06 per a distributor listing. Fitting the MD02 temperature module makes the unit unsuitable for outdoor use. It runs with Linux based platform, Akuvox Cloud portal and SmartPlus app, third-party SIP PBX integration.
- Manufacturer
- Akuvox
- Category
- Video door intercom
- Credentials
- Face recognition · RFID card · PIN or password · QR code · Mobile credential
- Capacity
- 2,000 users
- Connectivity
- TCP/IP · RS-485 · Wiegand · OSDP · SIP intercom
Where this unit fits
- Gates, compounds and exposed entrances that see full UAE summer sun and dust
- Contactless entry where hygiene matters or hands are gloved and wet
- Single-door offices and small teams that need a straightforward daily record
- Slotting into an access control panel you already own
- Multi-credential entry: face, card, PIN, QR, BLE and app
- A full SIP video intercom, not only an access reader
- IP65 outdoor capable with a 5 inch touchscreen
- PoE single-cable installation
- Cloud or on-premise SIP server deployment
Full specification
Taken from the manufacturer's own datasheet, with the source linked.
| Brand / Manufacturer | Akuvox |
|---|---|
| Device type | SIP video door phone and IP access control unit with AI facial recognition, surface or on-wall mount |
| Verification methods | Face recognition, NFC / RFID card 13.56 MHz, PIN code, QR code, Bluetooth BLE mobile, mobile app. Optional mask detection and optional body temperature detection with the MD02 thermal module |
| Capacity | UNVERIFIED. Distributor sources conflict: one European spec lists 2,000 faces and 2,000 cards, another lists 20,000 faces. No Akuvox-owned page confirms either figure |
| Display | 5 inch IPS LCD capacitive touchscreen, 1280 x 720 |
| Camera | 2 MP with WDR and automatic illumination. A dual-camera configuration for liveness and anti-spoofing is cited by one distributor |
| Communication | SIP standard compliant for any SIP PBX, H.264 video, G.722 audio, Ethernet, Wiegand port, RS485, OSDP support, Akuvox Cloud / SmartPlus management |
| Access control | Relay input and output for the door lock, Wiegand and RS485 for reader or controller integration, anti-spoofing against photo and video attacks, recognition under 200 ms, intercom call to an indoor monitor or mobile app |
| Card types | 13.56 MHz NFC / RFID |
| Power supply | PoE IEEE 802.3af or 12V DC external supply |
| Dimensions | 88 x 192 x 27.5 mm, approx. 0.60 kg net, ABS / PC housing (distributor sourced) |
| Protection rating | IP65 confirmed by Akuvox, IK06 per a distributor listing. Fitting the MD02 temperature module makes the unit unsuitable for outdoor use |
| Software | Linux based platform, Akuvox Cloud portal and SmartPlus app, third-party SIP PBX integration |
Where this data comes from
Every specification here is checked against the manufacturer's own document before it goes live.
Common questions
- How many employees does the Akuvox E16C hold?
- The Akuvox E16C stores up to 2,000 enrolled records on the device. We check your headcount and peak-minute traffic before recommending it.
- How does the Akuvox E16C connect?
- It supports TCP/IP, RS-485, Wiegand, OSDP and SIP intercom. In UAE installations we normally run it on wired Ethernet, with Wi-Fi kept as the fallback where cabling is impractical.
- Can the Akuvox E16C be installed outdoors in the UAE?
- The manufacturer rates it IP65 confirmed by Akuvox, IK06 per a distributor listing. Fitting the MD02 temperature module makes the unit unsuitable for outdoor use. We still specify a shade hood on elevations that take direct midday sun, which extends screen and sensor life.
- What software runs the Akuvox E16C?
- Linux based platform, Akuvox Cloud portal and SmartPlus app, third-party SIP PBX integration. We connect the attendance data through to payroll and produce a WPS-ready export, so the punches become a payable file rather than a report someone has to retype.
- Do you install and support the Akuvox E16C across the UAE?
- Yes. We supply, install, configure, train your team and support it across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Call +971 54 707 9900 for a fixed written quote.
