Time attendance terminal
FingerTec R2 in the UAE

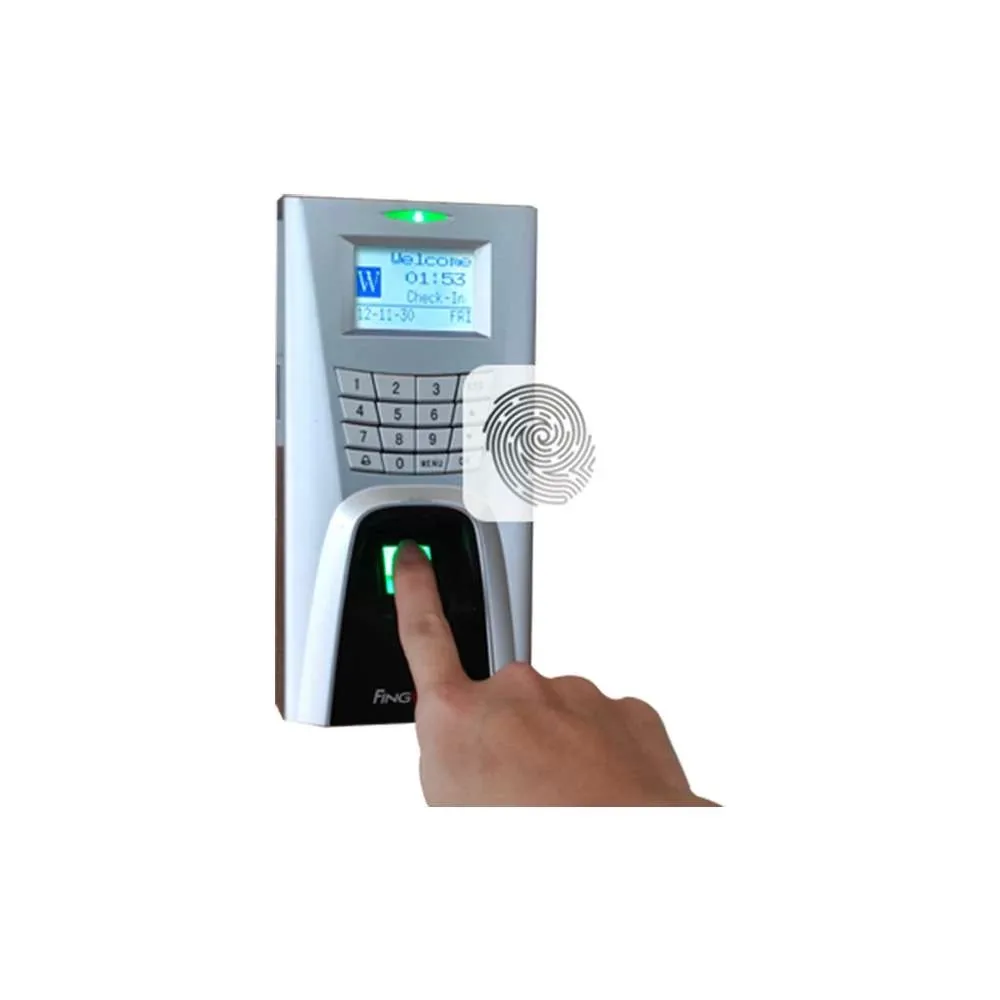

The FingerTec R2 is a time attendance terminal from FingerTec, using fingerprint, rfid card and pin or password as the credential. It stores 3,000 fingerprints and 1,000 cards on the device itself. It connects over TCP/IP, RS-485, RS-232, Wiegand and USB. It runs with Ingress / TCMS V3, BioBridge VX 9.0 / 10.0 algorithm. 400 MHz CPU, 128 MB flash, 32 MB SDRAM.
- Manufacturer
- FingerTec
- Category
- Time attendance terminal
- Credentials
- Fingerprint · RFID card · PIN or password
- Capacity
- 3,000 fingerprints and 1,000 cards
- Connectivity
- TCP/IP · RS-485 · RS-232 · Wiegand · USB
Where this unit fits
- Single-door offices and small teams that need a straightforward daily record
- Slotting into an access control panel you already own
- Verification under 1 s, FAR under 0.0001%, FRR under 1%
- Access control and time attendance in one unit
- Pairs with the R2c slave reader for full in / out control
- Acts as RS485 master for slave readers
Full specification
Taken from the manufacturer's own datasheet, with the source linked.
| Brand / Manufacturer | FingerTec |
|---|---|
| Device type | Fingerprint, RFID card and password door access and time attendance terminal (master unit) |
| Verification methods | Fingerprint (1:1 and 1:N), card, password and combinations |
| Fingerprint capacity | 3,000 templates, 2 fingerprints per user |
| Card capacity | 1,000 |
| Password capacity | 1,000 |
| Transaction log | 120,000 |
| Display | 2.4 inch 3K colour LCD with photo ID display, short messaging and voice |
| Communication | TCP/IP, RS232, RS485, USB flash disk. Baud 9600-115200. Wiegand 26-bit in and out |
| Access control | EM lock driving output DC 12V / 3A via relay, alarm output NO / NC, anti-passback, 15 languages |
| Card types | RFID 64-bit 125 kHz standard. MIFARE MF1S50 / S70 13.56 MHz and HID 1326 26-bit 125 kHz made to order |
| Power supply | DC 12V / 3A |
| Operating temp. | 0 to 45 C, humidity 20-80% |
| Dimensions | 94 x 50 x 189 mm, ABS housing |
| Software | Ingress / TCMS V3, BioBridge VX 9.0 / 10.0 algorithm. 400 MHz CPU, 128 MB flash, 32 MB SDRAM |
| NOTE | Legacy generation but still listed on fingertec.com with documentation, no explicit end-of-life notice. |
Legacy generation but still listed on fingertec.com with documentation, no explicit end-of-life notice.
Where this data comes from
Every specification here is checked against the manufacturer's own document before it goes live.
Common questions
- How many employees does the FingerTec R2 hold?
- The FingerTec R2 stores up to 3,000 enrolled records on the device, with a 120,000-punch transaction log. We check your headcount and peak-minute traffic before recommending it.
- How does the FingerTec R2 connect?
- It supports TCP/IP, RS-485, RS-232, Wiegand and USB. In UAE installations we normally run it on wired Ethernet, with Wi-Fi kept as the fallback where cabling is impractical.
- What software runs the FingerTec R2?
- Ingress / TCMS V3, BioBridge VX 9.0 / 10.0 algorithm. 400 MHz CPU, 128 MB flash, 32 MB SDRAM. We connect the attendance data through to payroll and produce a WPS-ready export, so the punches become a payable file rather than a report someone has to retype.
- Do you install and support the FingerTec R2 across the UAE?
- Yes. We supply, install, configure, train your team and support it across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Call +971 54 707 9900 for a fixed written quote.
