How many employees does the ZKTeco F18 hold?

The ZKTeco F18 stores up to 3,000 enrolled records on the device, with a 100,000-punch transaction log. We check your headcount and peak-minute traffic before recommending it.

How does the ZKTeco F18 connect?

It supports TCP/IP, RS-485, RS-232, Wiegand and USB. In UAE installations we normally run it on wired Ethernet, with Wi-Fi kept as the fallback where cabling is impractical.

What software runs the ZKTeco F18?

ZKAccess 3.5, free SDK and development tools, USB key data transfer. We connect the attendance data through to payroll and produce a WPS-ready export, so the punches become a payable file rather than a report someone has to retype.

Do you install and support the ZKTeco F18 across the UAE?

Yes. We supply, install, configure, train your team and support it across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Call +971 54 707 9900 for a fixed written quote.

Time attendance terminal ZKTeco F18 time attendance terminal

Time attendance terminal

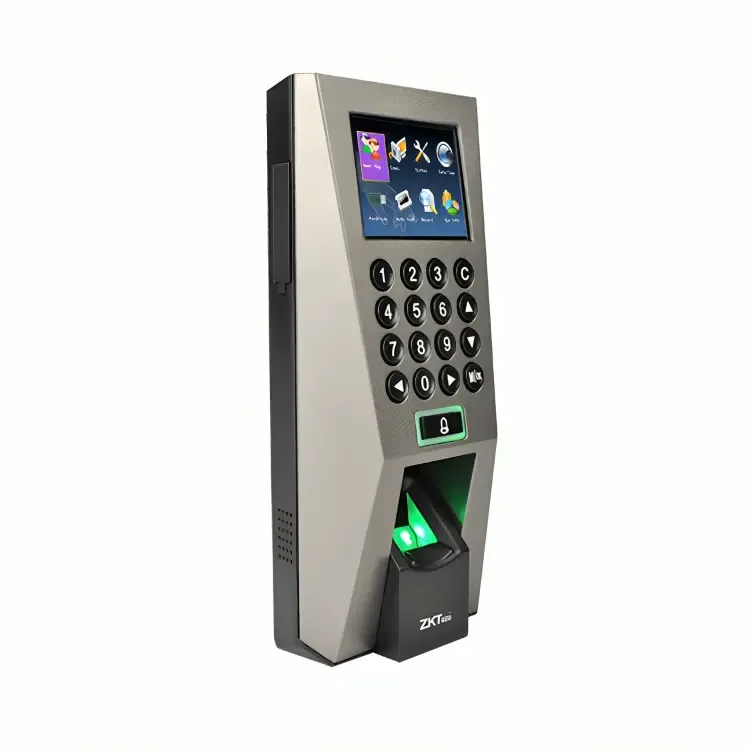

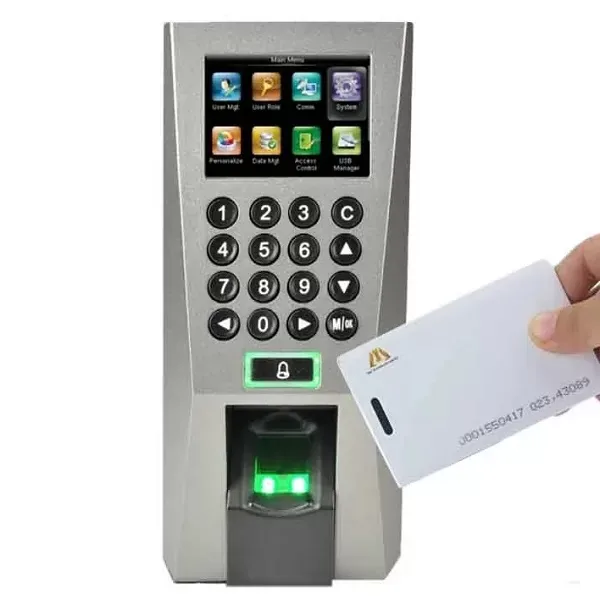

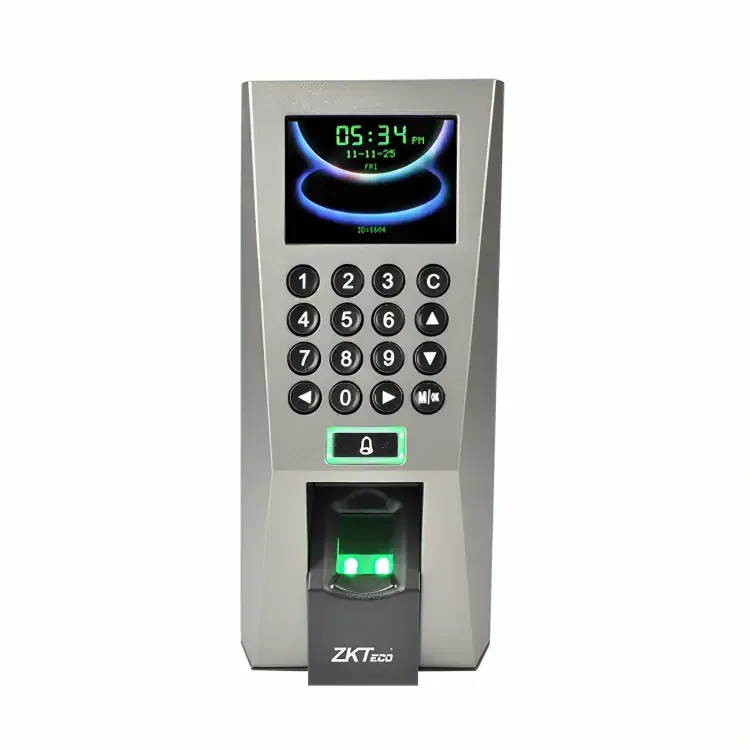

ZKTeco F18 in the UAE

The ZKTeco F18 is a time attendance terminal from ZKTeco, using fingerprint, rfid card and pin or password as the credential. It stores 3,000 fingerprints and 30,000 cards on the device itself. It connects over TCP/IP, RS-485, RS-232, Wiegand and USB. It runs with ZKAccess 3.5, free SDK and development tools, USB key data transfer.

Manufacturer: ZKTeco
Category: Time attendance terminal
Credentials: Fingerprint · RFID card · PIN or password
Capacity: 3,000 fingerprints and 30,000 cards
Connectivity: TCP/IP · RS-485 · RS-232 · Wiegand · USB

WhatsApp (Quickest)Get a fixed written quote

Download the datasheet (PDF)1199 KB

Where this unit fits

Single-door offices and small teams that need a straightforward daily record
Slotting into an access control panel you already own

Slim body made for narrow door frames and mullions
Recognition in about 1 second
Runs standalone or as a reader on an access control panel
Optional built-in card reader modules

Full specification

Taken from the manufacturer's own datasheet, with the source linked.

Brand / Manufacturer	ZKTeco
Device type	Standalone fingerprint access control terminal with keypad, also used for time attendance
Verification methods	Fingerprint, password / PIN, card (optional). ZKFinger V9.0 and V10.0 algorithm
Fingerprint capacity	3,000 templates
Card capacity	30,000
Transaction log	100,000
Display	TFT LCD colour screen (3.5 inch on F18-ID), 4x4 keypad, audio and visual feedback
Communication	TCP/IP, RS232 / RS485, USB host. Wiegand input and output
Access control	Anti-passback, time zones, personnel groups, built-in web server, third-party electric lock, door sensor, exit button, alarm and door bell, relay outputs for lock and alarm
Card types	ID / EM (optional), Mifare (optional). US variant also HID Prox and HID iClass
Power supply	DC 12V / 3A
Operating temp.	0 to 45 C, humidity 20-80%
Dimensions	80 x 183 x 42 mm, weight approx. 1.1 kg
Software	ZKAccess 3.5, free SDK and development tools, USB key data transfer

Download the datasheet (PDF)WhatsApp (Quickest)

Where this data comes from

Every specification here is checked against the manufacturer's own document before it goes live.

Common questions

How many employees does the ZKTeco F18 hold?: The ZKTeco F18 stores up to 3,000 enrolled records on the device, with a 100,000-punch transaction log. We check your headcount and peak-minute traffic before recommending it.
How does the ZKTeco F18 connect?: It supports TCP/IP, RS-485, RS-232, Wiegand and USB. In UAE installations we normally run it on wired Ethernet, with Wi-Fi kept as the fallback where cabling is impractical.
What software runs the ZKTeco F18?: ZKAccess 3.5, free SDK and development tools, USB key data transfer. We connect the attendance data through to payroll and produce a WPS-ready export, so the punches become a payable file rather than a report someone has to retype.
Do you install and support the ZKTeco F18 across the UAE?: Yes. We supply, install, configure, train your team and support it across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Call +971 54 707 9900 for a fixed written quote.
