How many employees does the ZKTeco TF1700 hold?

The ZKTeco TF1700 stores up to 3,000 enrolled records on the device, with a 50,000-punch transaction log. We check your headcount and peak-minute traffic before recommending it.

How does the ZKTeco TF1700 connect?

It supports TCP/IP, RS-485, Wiegand and USB. In UAE installations we normally run it on wired Ethernet, with Wi-Fi kept as the fallback where cabling is impractical.

Can the ZKTeco TF1700 be installed outdoors in the UAE?

The manufacturer rates it IP65 waterproof and dustproof, built for outdoor installation, with an operating range of -10 to 50 C. We still specify a shade hood on elevations that take direct midday sun, which extends screen and sensor life.

What software runs the ZKTeco TF1700?

ZKFinger V10.0 algorithm, ZKBioAccess / ZKTime management software, SDK available. We connect the attendance data through to payroll and produce a WPS-ready export, so the punches become a payable file rather than a report someone has to retype.

Do you install and support the ZKTeco TF1700 across the UAE?

Yes. We supply, install, configure, train your team and support it across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Call +971 54 707 9900 for a fixed written quote.

Time attendance terminal ZKTeco TF1700 time attendance terminal

Time attendance terminal

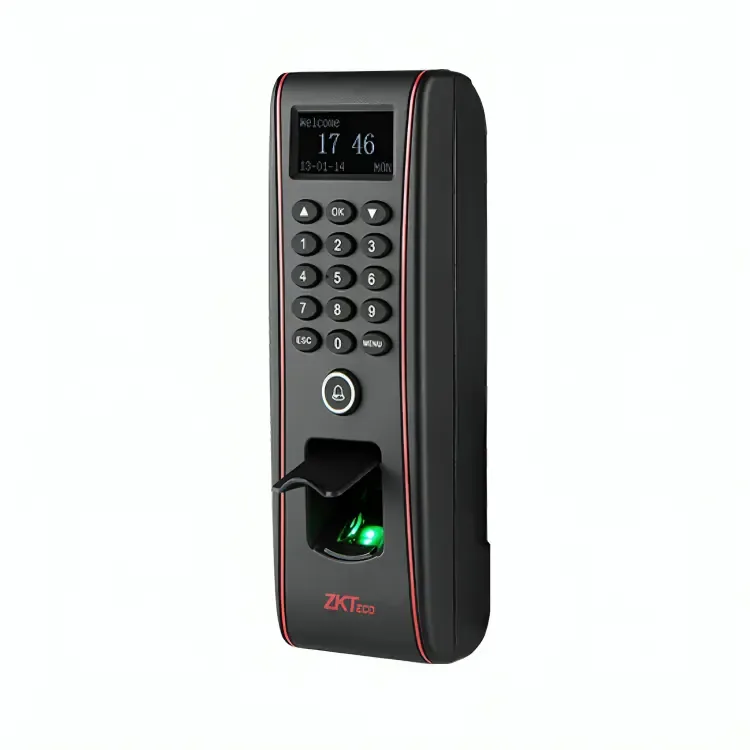

ZKTeco TF1700 in the UAE

The ZKTeco TF1700 is a time attendance terminal from ZKTeco, using fingerprint, rfid card and pin or password as the credential. It stores 3,000 fingerprints and 10,000 cards on the device itself. It connects over TCP/IP, RS-485, Wiegand and USB. Environmental rating: IP65 waterproof and dustproof, built for outdoor installation. It runs with ZKFinger V10.0 algorithm, ZKBioAccess / ZKTime management software, SDK available.

Manufacturer: ZKTeco
Category: Time attendance terminal
Credentials: Fingerprint · RFID card · PIN or password
Capacity: 3,000 fingerprints and 10,000 cards
Connectivity: TCP/IP · RS-485 · Wiegand · USB

WhatsApp (Quickest)Get a fixed written quote

Download the datasheet (PDF)2441 KB

Where this unit fits

Gates, compounds and exposed entrances that see full UAE summer sun and dust
Single-door offices and small teams that need a straightforward daily record
Slotting into an access control panel you already own

Purpose-built outdoor unit in a compact mullion-friendly size
One of the smallest Ethernet fingerprint terminals ZKTeco makes
Works standalone or as a Wiegand reader on a separate controller
Optional 8,000 template capacity version

Full specification

Taken from the manufacturer's own datasheet, with the source linked.

Brand / Manufacturer	ZKTeco
Device type	IP65 outdoor standalone fingerprint, card and PIN access control and time attendance terminal
Verification methods	Fingerprint / PIN / card and combinations
Fingerprint capacity	3,000 standard, 8,000 optional
Card capacity	10,000
Transaction log	50,000
Display	128 x 64 OLED display with 3x5 keypad, doorbell button, audio prompts and a multi-colour LED indicator
Communication	TCP/IP, RS485 optional, USB host. Wiegand input and output
Access control	Standalone door controller for access control plus time attendance, Wiegand in and out for third-party panels, doorbell
Card types	EM 125 kHz standard, IC / MIFARE optional
Power supply	12V DC / 3A
Operating temp.	-10 to 50 C
Dimensions	62.5 x 185 x 41.5 mm
Protection rating	IP65 waterproof and dustproof, built for outdoor installation
Software	ZKFinger V10.0 algorithm, ZKBioAccess / ZKTime management software, SDK available

Download the datasheet (PDF)WhatsApp (Quickest)

Where this data comes from

Every specification here is checked against the manufacturer's own document before it goes live.

Common questions

How many employees does the ZKTeco TF1700 hold?: The ZKTeco TF1700 stores up to 3,000 enrolled records on the device, with a 50,000-punch transaction log. We check your headcount and peak-minute traffic before recommending it.
How does the ZKTeco TF1700 connect?: It supports TCP/IP, RS-485, Wiegand and USB. In UAE installations we normally run it on wired Ethernet, with Wi-Fi kept as the fallback where cabling is impractical.
Can the ZKTeco TF1700 be installed outdoors in the UAE?: The manufacturer rates it IP65 waterproof and dustproof, built for outdoor installation, with an operating range of -10 to 50 C. We still specify a shade hood on elevations that take direct midday sun, which extends screen and sensor life.
What software runs the ZKTeco TF1700?: ZKFinger V10.0 algorithm, ZKBioAccess / ZKTime management software, SDK available. We connect the attendance data through to payroll and produce a WPS-ready export, so the punches become a payable file rather than a report someone has to retype.
Do you install and support the ZKTeco TF1700 across the UAE?: Yes. We supply, install, configure, train your team and support it across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Call +971 54 707 9900 for a fixed written quote.
