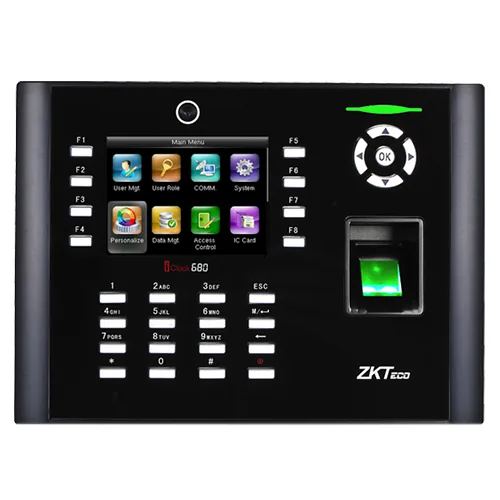

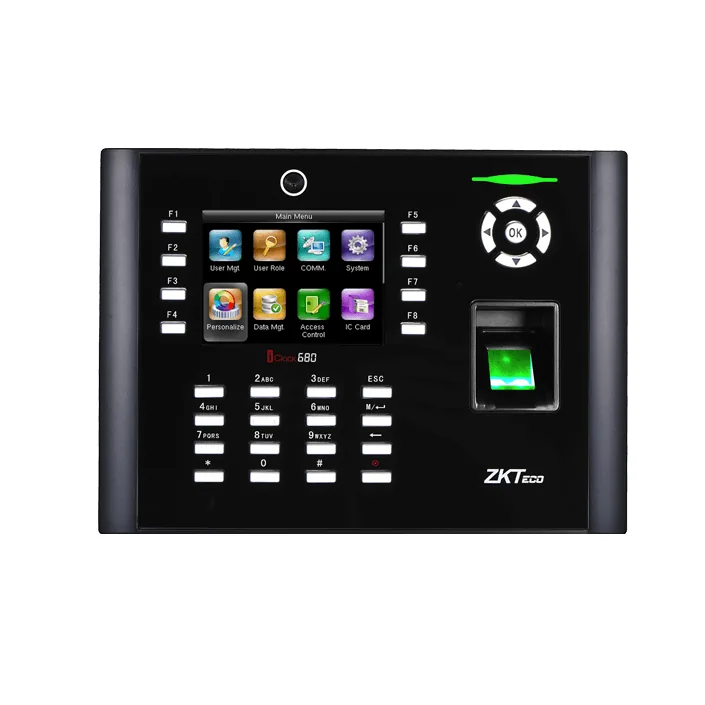

ZKTeco iClock 680 in the UAE
The ZKTeco iClock 680 is a time attendance terminal from ZKTeco, using fingerprint, rfid card and pin or password as the credential. It stores 30,000 users and 8,000 fingerprints on the device itself. It connects over TCP/IP, Wi-Fi, USB and 4G / cellular. It runs with Linux OS, ZKBio Time / ZKBio Time.Net, professional SDK, optional web server, ADMS, external printer.
- Manufacturer
- ZKTeco
- Category
- Time attendance terminal
- Credentials
- Fingerprint · RFID card · PIN or password
- Capacity
- 30,000 users and 8,000 fingerprints
- Connectivity
- TCP/IP · Wi-Fi · USB · 4G / cellular
Where this unit fits
- Large headcounts and shift changes that must clear without a queue
- Remote sites and vehicles with no fixed network to plug into
- Camera photographs every verification, stops buddy punching
- Verification within 1 s, FAR under 0.0001%, FRR under 1%
- 200,000 record log with USB backup and retrieval
- Wiegand in and out for master / slave or panel integration
- Multi-language audio and interface
Full specification
Taken from the manufacturer's own datasheet, with the source linked.
| Brand / Manufacturer | ZKTeco |
|---|---|
| Device type | Fingerprint time attendance & access control terminal with built-in camera |
| Verification methods | Fingerprint, password, RFID card (optional). Wiegand in and out |
| User capacity | 30,000 |
| Fingerprint capacity | 8,000 |
| Transaction log | 200,000 |
| Display | 3.5 inch TFT LCD colour screen, 1.3 MP camera, red / green LED indicators |
| Communication | TCP/IP, USB client, USB pen drive. Optional WiFi and GPRS / 4G |
| Access control | Time zones, groups, holidays, unlock combinations, relay for third-party lock, door sensor, exit button, alarm / siren, door bell, up to 9,999 described events |
| Card types | ID / IC (Mifare, configurable keys) / HID, optional |
| Power supply | DC 12V / 1.5A |
| Operating temp. | 0 to 45 C, humidity 20-80% |
| Dimensions | 205.6 x 150 x 41.6 mm, weight approx. 1.4 kg |
| Software | Linux OS, ZKBio Time / ZKBio Time.Net, professional SDK, optional web server, ADMS, external printer |
Where this data comes from
Every specification here is checked against the manufacturer's own document before it goes live.
Common questions
- How many employees does the ZKTeco iClock 680 hold?
- The ZKTeco iClock 680 stores up to 30,000 enrolled records on the device, with a 200,000-punch transaction log. We check your headcount and peak-minute traffic before recommending it.
- How does the ZKTeco iClock 680 connect?
- It supports TCP/IP, Wi-Fi, USB and 4G / cellular. In UAE installations we normally run it on wired Ethernet, with Wi-Fi kept as the fallback where cabling is impractical.
- What software runs the ZKTeco iClock 680?
- Linux OS, ZKBio Time / ZKBio Time.Net, professional SDK, optional web server, ADMS, external printer. We connect the attendance data through to payroll and produce a WPS-ready export, so the punches become a payable file rather than a report someone has to retype.
- Do you install and support the ZKTeco iClock 680 across the UAE?
- Yes. We supply, install, configure, train your team and support it across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Call +971 54 707 9900 for a fixed written quote.
